Regulator Units
There are 2 types of regulators depending on phase of wave. It is normally connected with AC generator to regulate the electrical power charging to battery. In case of burning or overheat the battery even whole vehicle, this component is essential to check regularly if you regulator is working well. Please do not replace different regulator, even if they look very similar to eachother. that will cause insufficient power charge to the battery or more serious problems to your vehicle. ASK LOCAL TECHNICIAN BEFORE YOU REPLACE NEW REGULATOR.
|

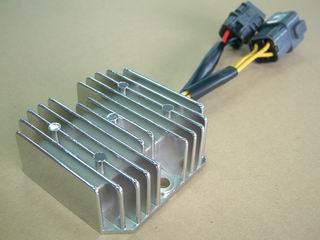

Regulator Units
|
|
|
| KDU Regulator |
| Part No |
KDU |
| Regulated method |
Single phase |
| Charging voltage/current |
14.5V/10A |
| Application |
For 2 wheels vehicles 50cc |
| Description |
SYM ref:31600-A39-000;31600-KBN-9200 |
|
|
|
|
|

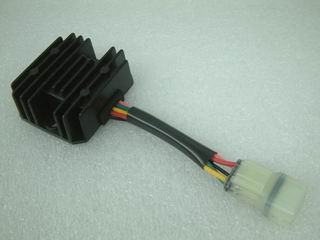

LLB1 Regulator
|
| Part No |
J23A-3 |
| Regulated method |
Single phase |
| Charging voltage/current |
14.5V/20A |
| Application |
For 2 wheels vehicles |
| Description |
SYM ref:31600-324-000
KYMCO ATV MXER 125/150 Euro 2
KYMCO ref:31600-LBA7-900 |
|
|
|
|
|
LCD3 Regulator for People S
|
| Part No |
LCD3 (J23H-1) |
| Regulated method |
Single phase |
| Charging voltage/current |
14.5V/20A |
| Application |
For 2 wheels vehicles |
| Description |
PEOPLE S 125~250 (Carburettor engine)
LIKE 50~125
KYMCO ref:31600-LCD3-E00 |
|
|
|
|
|
LFC2 Regulator for Agility
|
| Part No |
LFC2 (J23A-5C) |
| Regulated method |
Single phase |
| Charging voltage/current |
14.5V/12A |
| Application |
For 2 wheels vehicles |
| Description |
Agility 50/150 (09/13)
Super 8 50 4T (07/12)
KYMCO ref:31600-LFC2-E10;31600-LEJ3-E10 |
|
|
|
|
|
M9Q Regolatore di Shark
|
| Part No |
M9Q |
| Regulated method |
Single phase |
| Charging voltage/current |
14.5V/25A |
| Application |
For 2 wheels vehicles |
| Description |
SYM ref:31600-M9Q-000
Shark 125/150; Husky 125 |
|
|
|
|
|
KAM1 Regolatore di People S
|
| Part No |
KAM1 / KA1 (J23C-4) |
| Regulated method |
Tri-phase |
| Charging voltage/current |
14.5V |
| Application |
For 2/4 wheels vehicles |
| Description |
KYMCO People S 200i~250i,Dink125~250,Yup 250,X-Citing 250,Heroism 125~150 Bet&Win 125~250
bETAMOTOR EIKON 125~150
HONDA CN 250 Helix/Spazio
DAELIM S2 250
MALAGUTI F18 Warrior 125~150
PIAGGIO Hexagon GT/Super GTX 250
SYM Joy Ride 125~200,SuperDuke 150
KYMCO ref:31600-KAM1-009,31600-MK1-008
HONDA ref:31600-KS4-770
DAELIM ref:31600SZ1900
MALAGUTI ref:02601800
PIAGGIO ref:495186
SYM ref:31600-M56-000
SH532A-12
|
|
|
|
|
|
HONDA SH Regolatore
|
| Part No |
J23C-8 |
| Regulated method |
Triple phase (6 Wires) |
| Charging voltage/current |
14.5V |
| Application |
2 wheels vehicles |
| Description |
HONDA SHi125~150 05/10,PSi 125~150 06/10
Ref:31600-KTF-641
SH541-PA
|
|
|
|
|
| LBA7 Regulator for ATV |
| Part No |
LBA7 |
| Regulated method |
Trip phase |
| Charging voltage/current |
14.5V |
| Application |
2/4 wheels vehicles |
| Description |
KYMCO ATV MAXXER 300;MXU 50~300cc
KYMCO ref:31600-LBA7-900
|
|
|
|
|
| Chromium Plated Alloy Regolatore |
| Part No |
J23C-9 |
| Regulated method |
Triple phase |
| Charging voltage/current |
15V |
| Application |
2/4 wheels vehicles |
| Description |
KYMCO ATV KXR 250 |
|
|
|
|
| LEA2 Regolatore |
| Part No |
LEA2 |
| Regulated method |
Trip phase |
| Charging voltage/current |
14.5V |
| Application |
2 Wheels vehicles |
| Description |
KYCMO SCOOTER INJECTION SYSTEM |
|
|
|
|
| |
| |
| |
| |
| LDG7(KED9) Regolatore |
| Part No |
J23C |
| Regulated method |
Trip phase |
| Charging voltage/current |
14.5V |
| Application |
2 Wheels vehicles |
| Description |
KYMCO Downtown(Nikita) 125~300cc,People GT 125~300cc,Venox/Euro2/IE Euro3 250
|
|
|
|
|
| KED9-910(New Version) Regolatore |
| Part No |
31600-KED9-910 |
| Regulated method |
Trip phase |
| Charging voltage/current |
14.5V/25A |
| Application |
2 Wheels vehicles |
| Description |
KYMCO Downtown(Nikita) 125~300cc,People GT/S IE 125~300cc applied since 2014~
X-Citing IE,I/IR 250~500
Dink IE Euro3 200
KYMCO ref:31600-KED9-E10;31600-KED9-900
31600-LDG7-900
|
|
|
|
|
| LDB5 Regolatore |
| Part No |
J23G |
| Regulated method |
Trip phase |
| Charging voltage/current |
14.5V |
| Application |
2/4 Wheels vehicles |
| Description |
KYMCO ATV MXU 500cc,UXV 500cc
KYMCO ref:31600-LDB5-E00 |
|
|
|
|
| LKF5 Regolatore |
| Part No |
31600-LKF5-E00 |
| Regulated method |
Trip phase |
| Charging voltage/current |
14.5V/38A |
| Application |
2 Wheels vehicles |
| Description |
KYMCO Xciting 300/400 |
|
|
|
|
| ZZA6 Regolatore |
| Part No |
31600-ZZA6-E00 |
| Regulated method |
Trip phase |
| Charging voltage/current |
14.5V/38A |
| Application |
2 Wheels vehicles |
| Description |
KAWASAKI J300 |
|
|
|
|
| LHG7 (Nuovo) Regulator |
| Part No |
31600-LHG7-E00 |
| Regulated method |
Confidential |
| Charging voltage/current |
14.5V/25A |
| Application |
2 Wheels vehicles |
| Description |
KYMCO GRAND DINK 125/180/300 2013~ |
|
|
|
|
| MAXSYM 400/600 (NEW) Regolatore |
| Part No |
31600-L4A-000 |
| Regulated method |
Confidential |
| Charging voltage/current |
14.5V/40A |
| Application |
2 Wheels vehicles |
| Description |
SYM MAXSYM 400 / 600 RV 400 |
|
|
|
|
| SYM HMA (NEW) Regolatore |
| Part No |
31600-HMA-020 |
| Regulated method |
Confidential |
| Charging voltage/current |
Confidential |
| Application |
2 Wheels vehicles |
| Description |
SYM GTS 250 / 300 EVO 250 |
|
|
|
|
| SYM CITYCOM 300 (NEW) Regolatore |
| Part No |
31600-LEA-010 |
| Regulated method |
Confidential |
| Charging voltage/current |
Confidential |
| Application |
2 Wheels vehicles |
| Description |
SYM CITYCOM 300 |
|
|
|
|
| SYM WOLF 250 (NEW) Regolatore |
| Part No |
31600-BAA-010 |
| Regulated method |
Confidential |
| Charging voltage/current |
Confidential |
| Application |
2 Wheels vehicles |
| Description |
SYM WOLF T2 / SB 250 |
|
|
|
|
| FFA (NUOVO) Regolatore |
| Part No |
31600-FFA-010 |
| Regulated method |
Confidential |
| Charging voltage/current |
14.5V/20A |
| Application |
2 Wheels vehicles |
| Description |
SYM FIGHTER /JET POWER |
|
|
|
|
| KFG Regolatore |
| Part No |
31600-KFG-860 / 31600-MV4-000 |
| Regulated method |
Trip phase |
| Charging voltage/current |
14.8V |
| Application |
2 Wheels vehicles |
| Description |
Honda CBR/VFR series
Malaguti, Piaggio
|
|
|
|
|
| |
| |
| |
| |

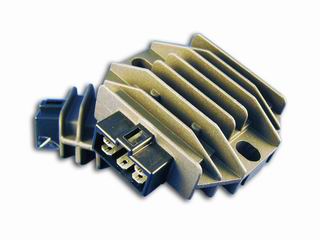

| SH640D Regolatore |
| Part No |
SH640E |
| Regulated method |
Trip phase |
| Charging voltage/current |
14.8V |
| Application |
2 Wheels vehicles |
| Description |
Equi:Mitsuba,SH640D,SH640E series.
Majesty 125~250 ,Piaggio, Aprila, Gilera
|
|
|
|
|
| SH640E-T 4C6 Regolatore |
| Part No |
4C6 |
| Regulated method |
Trip phase |
| Charging voltage/current |
14.1V |
| Application |
2 Wheels vehicles |
| Description |
Cyguns 125cc /MAJESTY 125/150 2014~ |
|
|
|
|

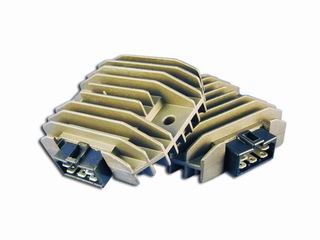

| SH650A T-MAX 500 Regolatore |
| Part No |
SH650A |
| Regulated method |
Trip phase |
| Charging voltage/current |
14.8V |
| Application |
2 Wheels vehicles |
| Description |
equ:SH650A
T-MAX 500cc |
|
|
|
|
| SH650D Regolatore |
| Part No |
SH650D |
| Regulated method |
Trip phase |
| Charging voltage/current |
14.8V |
| Application |
2 Wheels vehicles |
| Description |
equ:SH650D |
|
|
|
|
| Ta Young Regulator Series |
|
|
| Part No |
J23 Series |
| Regulated method |
Single phase/ triple phase |
| Charging voltage/current |
14.1~15.5V/10~48A |
| Application |
For 2/4 wheels vehicles |
| Description |
ASK for Detail. |
|
|
|
| |
